Transparent Glass Led Screen P3.9mm Indoor Transparent Glass Window Advertising LED Screen
Advantages :
1 . No steel frame structure , saving a lot of installation and maintenance costs ;
2 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost ;
3 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect ;
4 . Easy and fast maintenance of indoor maintenance , both fast and safe , save manpower and material resources ;
5 . Low power consumption , long life , stable performance and less maintenance ;
6 . The appearance can be customized , flexible , with a strong visual impact , leaving a deep impression ;
7 . Simple installation , simple use , convenient maintenance ;
8 . Fast and convenient assembly and disassembly system , saving loading and unloading time .
Specifications :
| P3.9-7.8 Full Color LED Transparent Screen |
| Part I Technicial Parameters |
| Led Module Specification |
| Item | Specification |
| Pixel Pitch | 3.9-7.8mm | 2.8-5.6mm | 7.8-7.8mm | 10.4-10.4mm |
| Led Packing | 1921 | 1921 | 2020 | 1921 | 1921 | 2020 | 1921 | 1921 |
| IP Rate | 43 |
| IC | 2038 |
| LED composition | 1R1G1B |
| Cabinet Specification |
| Cabinet Size | 1000*500mm | 1000*1000mm |
| Physical Resolution | W256×H64dots | W352*H88dots | W128*H64dots | W96*H96dots |
| Power Consumption(MAX.) | 800 W/m2 | 600W/m2 | 400W/m2 | 800 W/m2 | 800 W/m2 | 600W/m2 | 800 W/m2 |
| Power Consumption(AVE.) | 220 W/m2 | 200W/m2 | 180W/m2 | 220 W/m2 | 220 W/m2 | 200W/m2 | 220 W/m2 |
| Cabinet Material | Die-casting Aluminum | Sectional material |
| Physical Density | 32873 dots/m2 | 63775 dots/m2 | 16436 dots/m2 | 9245 dots/m2 |
| Net Weight | 6Kg | 10Kg |
| Screen Specification |
| Brightness | 5000cd/m2 | 3500cd/m2 | 1000cd/m2 | 5000cd/m2 | 1200cd/m2 | 5000cd/m2 | 3500cd/m2 | 5000cd/m2 |
| Colors | 281 trillion |
| Brightness Control | Software 256 level adjustable |
| Gray Level | 14 |
| View Distance | 5～12m |
| Refresh Rate | ≥3840Hz |
| Drive Mode | 1/8s | 1/16s | 1/11s | 1/4s | 1/2s |
| Life Span | 100,000h |
| MTBF | 1000h |
| Control mode | Synchronous control or Asynchronous control |
| Frame Frequency | ≥60Hz |
| Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
| Operation Temperature | -20℃ ～ +45℃ |
| Operation Humidity | 10%～95% |

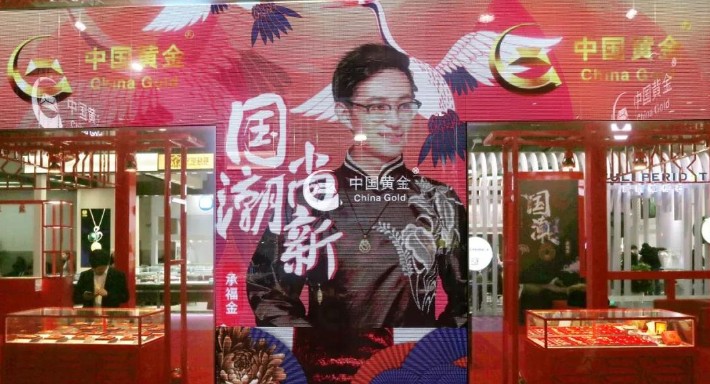

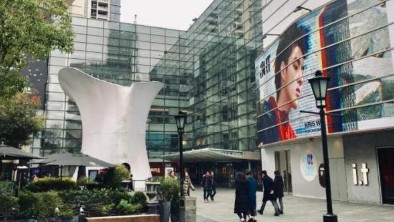

Applications :
Led transparent P3.9 - 7.8 led screen display used in concert stage background , chain store , plaza ,
shopping mall , high - end mall , 4s automobile store , square , bank , exhibition room , trade show ,
entertainment place , theme park , and so on .
FAQ :
1 . MOQ ?
Our MOQ is 1 Sqm .
We also support sample order such as 1 cabinet or several modules as trial before the mass order .
2 . What payment methods are available to me ?
We accept T / T , L / C and Western Union .
3 . Delivery time ?
Usually 7 ~ 10 days for led modules , 15 ~ 18 days for led screen with cabinet .
